Brand Name : Sanwu Cable
Model Number : ABC cable
Certification : ISO SGS
Place of Origin : Henan,China
MOQ : 1000M
Price : Negotiate
Payment Terms : T/T, L/C,
Supply Ability : 200 tons per day
Delivery Time : 25days
Packaging Details : Wooden drum, reel,or according to customers request.
Conductor : Auminum 1350
Insulation : PVC,PE,XLPE,HDPE
Application : overhead transmission line
Voltage : 0.6/1 kv
We have one big workshop to produce the raw material: aluminium wire rod anout 800ton/day, many company buy it from us to produce various cable so that our monthly turnover of it has up to 100 million! So our price is very competitive and can gurantee the delivery time!
Product Description
Applications of twisted abc cable
Primarily used for 120 volt overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
code | Rated Voltage | Type | ABC | |||||||||||
AWG or kcmil | Structure | |||||||||||||
Neutral Wire (ACSR) | Phase Wire | Cable | Cable | |||||||||||
Steel | Aluminium | Conductor | Aluminium | Dia | Dia | Dia | kg/km | |||||||
No. | Dia | No. | Dia | Dia | No. | Dia | mm | |||||||
Morochuca | 3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 1 | 4.11 | 4.11 | 1.14 | 6.40 | 14.62 | 221 | |
Chola | 3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 7 | 1.55 | 4.66 | 1.14 | 6.95 | 15.62 | 227 | |
Morgan | 3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 1 | 5.19 | 5.19 | 1.14 | 7.48 | 17.37 | 331 | |
Hackney | 3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 7 | 1.96 | 5.88 | 1.14 | 8.17 | 18.62 | 338 | |
Palomino | 3*2AWG+1*2AWG | 1 | 2.67 | 6 | 2.67 | 8.02 | 7 | 2.47 | 7.42 | 1.14 | 9.71 | 22.41 | 511 | |
Costena | 3*1/0AWG+1*1/0AWG | 1 | 3.37 | 6 | 3.37 | 10.11 | 19 | 1.89 | 9.47 | 1.52 | 12.52 | 28.77 | 824 | |
Grullo | 3*2/0AWG+1*2/0AWG | 1 | 3.78 | 6 | 3.78 | 11.35 | 19 | 2.13 | 10.63 | 1.52 | 13.68 | 31.61 | 1015 | |
Suffolk | 3*3/0AWG+1*3/0AWG | 1 | 4.25 | 6 | 4.25 | 12.74 | 19 | 2.39 | 11.94 | 1.52 | 14.99 | 34.82 | 1254 | |
Appaloosa | 3*4/0AWG+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 2.68 | 13.40 | 1.52 | 16.45 | 38.42 | 1554 | |
Broneo | 3*336.4+1*336.4 | 1 | 3.47 | 18 | 3.47 | 17.36 | 19 | 3.38 | 16.90 | 2.03 | 20.96 | 48.43 | 2321 | |
Gelding | 3*336.4+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 3.38 | 16.90 | 2.03 | 20.96 | 46.59 | 2221 |
Packaging & Shipping
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.
3)Treated wooden/steel-wooden drums for big diameter cables.
Welcome come our factory at any time! we trust you will like it!

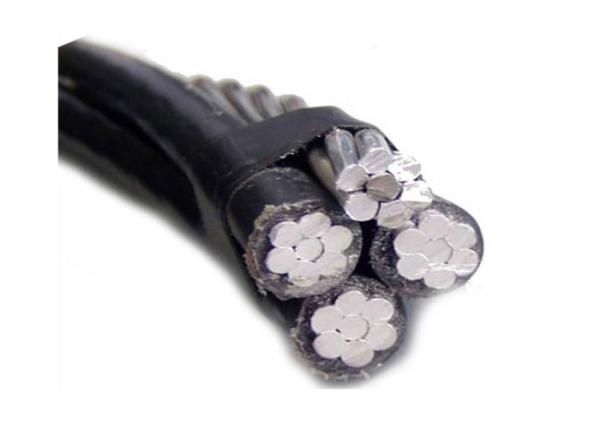

XLPE Insulated ABC Cable Overhead Duplex wire Aluminum Conductor Aerial Bundle cable Images |
