Triplex Utility Distribution Cable 600V and Aluminum Triplex Conductor Underground Low Voltage Power Cable
Our company founded in 2008, with own factory, have more business experience.
Aluminum Triplex Conductor Underground Power Cable Construction:
- Complete Cable:
- 2 phase conductors and 1 neutral conductor insulated with Extruded Cross-Linked Polyethylene (XLPE)
- Twisted cables form Triplex assembly
- Manufactured and tested in accordance with ANSI/ICEA Standard S-105-692
- When specified, cable produced in accordance with UL 854 and listed as Type USE-2 cable
- Conductors:
- Class B compressed aluminum 1350-H19 meeting requirements of ASTM B231 or B786
- Insulation:
- Insulation is Extruded Black Cross-Linked Polyethylene (XLPE)
- 2 phase conductors are black; neutral conductor is black identified by 3 extruded yellow stripes.
Aluminum Triplex Conductor Underground Power Cable Features and Benefits:
- Suitable for direct burial or installations in ducts
- Resistant to abrasion, sunlight, and impact
- For NEC-complying applications, maximum conductor operating temp is 90°C in wet or dry locations
- Also suitable for non-code-complying temperature of 90°C in wet or dry locations in accordance with ICEA specifications
Aluminum Triplex Conductor Underground Power Cable Applications:
- Underground systems operated at 600 volts or less.
Aluminum Triplex Conductor Underground Power Cable Options:
- Aluminum 1350-H16 conductor
- Copper conductors
- Other neutral identification methods
- Sizes 250 - 500 kcmil available with UL-allowed thin wall (0.080") insulation
- CDC Combined Duct & Cable
- Reeless Package
- Alloy 8000 Aluminum Conductor
- Type RHH/RHW-2 rating to UL 44
- Type USE-2 per UL 44
Ⅰ Applications
Primarily used for overhead service application such as street lighting,outdoor lighting,and temporary service for construction, To be used at voltage of 600V to 2200V phase-to-phase or less at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross liked polyethylene insulated conductors.
Ⅱ Standards
We could produce the cable according to many standards: ICEA S-76-474,
ICEA S-95-658,ICEA S-61-402,ICEA S-66-524.NFC 33. IEC
we will do our best to meet your requirements
ⅢSpecification
1. Phase conductor: Aluminum wire, 1350-H19
2. Neutral Conductor : Aluminum wire 1350-H19, All Alloy Aluminum Conductor 6201, Aluminum Conductor Steel Reinforced
3. The material of insulation: XLPE,PE,PVC
4. The Voltage: 600V-2200V

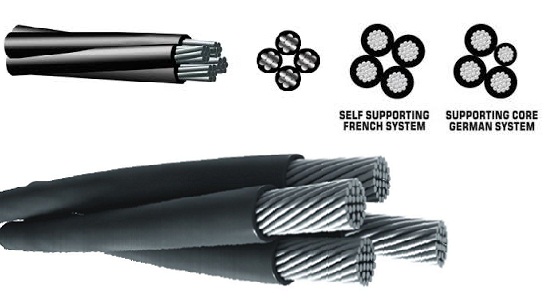

Quadruplex AAAC Cable
| Code Word | AWG or Kcmil | Neutral AAAC | Phase AAC |
| Bay | 3*6AWG+1*30.58 | 7/1.68 | 1/4.11 |
| French Coach | 3*6AWG+1*30.58 | 7/1.68 | 7/1.56 |
| German Coach | 3*4AWG+1*48.69 | 7/2.12 | 1/5.19 |
| Arabian | 3*4AWG+1*48.69 | 7/2.12 | 7/1.96 |
| Belgian | 3*2AWG+1*77.47 | 7/2.67 | 7/2.47 |
| Shetland | 3*1/0 AWG+1*123.3 | 7/3.37 | 19/1.89 |
| Thoroughbred | 3*2/0 AWG+1*155.4 | 7/3.78 | 19/2.13 |
