Bare ACAR Conductor Aluminium Conductor Alloy Reinforced

China Manufacture Supply Bare Aluminium Conductor Alloy Reinforced ACAR Conductor

1.Application: Aluminum Conductor Alloy Reinforced (ACAR) cable is an excellent conductor choice where current carrying capacity, higher strength and a lower conductor weight are critical to the line design.

ACAR is a concentric-laystranded conductor made from round aluminum 1350-H19 (extra
Hard) wires and round aluminum 6201-T81 wires. ACAR conductors are available in single and multi-layer constructions. These choices provide the necessary strength and the current carrying capacity for given applications. For equal weight, ACAR conductors offer higher strength and ampacity than ACSR conductors.
Typically, 1350-H19 wires are stranded around a core of 6201- T81 wires. However, in some designs 1350-H19 and 6201-T81 wires are stranded in the same layer.

2.Construction: Aluminum Conductor Alloy Reinforced (ACAR) cable has aluminum 1350 H-19 wires stranded around a 6201-T81 aluminum alloy core concentrically

3.Characteristic: Conductor type: Max. Cross-section 3000MCM Max. stranded number 91Nos We can produce according to client’s need and also provide technical data. 4.Standard: ASTMB230 Specification for Aluminum 1350-H19 Wire for Electrical Purposes ASTM B398Specification for Aluminum Alloy 6201-T81 Wire for Electrical Purposes ASTM B524 Specification for Concentric-Lay-Stranded Aluminum Conductors, Aluminum Alloy Reinforced (ACAR, 1350/6201)

4. Producing Process:

5.Our Products:

6.Packaging & Delivery:

Packaging Details

Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.

Alloy Reinforced ACAR Conductor

Bare ACAR Conductor

Bare Aluminium Conductor Alloy Reinforced

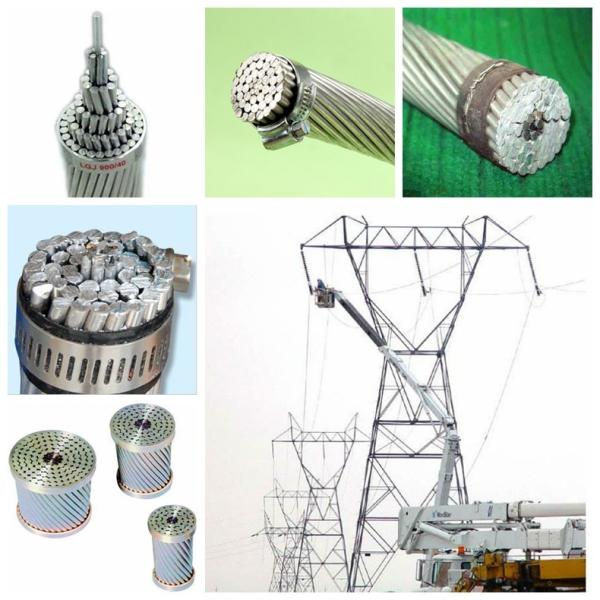

Bare ACAR Conductor Aluminium Conductor Alloy Reinforced Images
