Xlpe Aerial Bundle Conductor Cable Abc Overhead For Lighting

Name: Xlpe Aerial Bundle Conductor Cable Abc Overhead For Lighting
Brand: Sanwu
Price: 1 USD

Brand Name : Sanwu

Model Number : ABC CABLE

Certification : ISO CCC

Place of Origin : Henan

MOQ : 1000M

Price : Negotiable

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 200 tons per day

Delivery Time : 1-15days

Packaging Details : wooden drums or as customers' requirements

Name : XLPE Aerial Bundled Cable

Voltage : 0.6/1kv

Insulation : xlpe

Package : wooden drums

Supply ability : 1500km per month

Minimum order quantity : 5000meters

Contact Now

XLPE Aerial Bundled Cable Abc Overhead Cable For Lighting

Quick Details

(1)The rated voltage Uo/U is 0.6/1kV.

(2)The maximum rated temperature of cable conductor is 90℃.

(3)Cable shall be laid at no less than -20℃

(4)Minimum allowable bending radius of the cable: Cable with an outer diameter(D) less than 25mm shall have a diameter no less than 4D. The outer cable diameter(D) of 25mm and above shall be not less than 6D

Description:

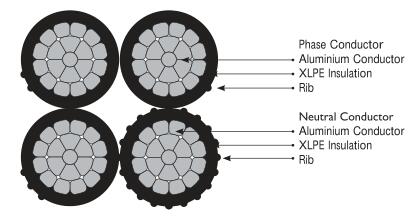

The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium 1350 are insulated with XLPE phase and neutral cores are laied up in a bundled with left hand lay. Cables are rated at 0.6/1(1.2) KV and conform to AS/NZS 3560.1

The main advantages of aerial bundled cables include:

1. ease of erection and stringing.

2. Practically no tree - trimming required.

3. Less maintenance.

ABC Cables technical characteristics:

Cores	Nominal cross-sectional area	Phase Conductors insulation	Dia. Of cable	R. of conductors at 20℃		Break strength of conductor
Cores	Nominal cross-sectional area	Phase Conductors insulation	Dia. Of cable	Ω/km		KN
3C+1C	mm2	Thickness (mm)	mm	Phase cores	Neutral cores	Phase cores	Neutral cores
3C+1C	3x25+54.6	1.4	23.57	1.2	0.630	16.6	16.6
3C+1C	3x35+54.6	1.6	26.08	0.868	0.630	16.6	16.6
3C+1C	3x50+54.6	1.6	28.15	0.641	0.630	16.6	16.6
3C+1C	3x70+54.6	1.8	32.15	0.443	0.630	16.6	16.6
3C+1C	3x70+54.6	1.8	32.15	0.443	0.630	16.6	16.6
3C+1C	3x70+70	1.8	32.75	0.443	0.500	20.5	20.5
3C+1C	3x95+70	1.8	35.78	0.32	0.500	20.5	20.5
3C+1C	3x120+70	1.8	37.93	0.253	0.500	20.5	20.5
3C+1C	3x120+70	1.8	37.93	0.253	0.500	20.5	20.5
3C+1C	3x120+95	1.8	39.26	0.253	0.343	27.5	27.5
3C+1C	3x150+95	1.9	41.81	0.206	0.343	27.5	27.5
