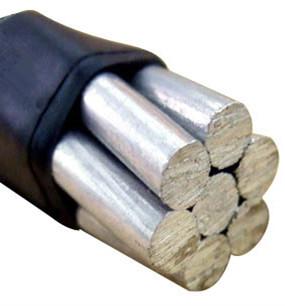

Aluminum Overhead Aerial Bundle Conductor Covered Line Wire

Name: Aluminum Overhead Aerial Bundle Conductor Covered Line Wire
Brand: SANWU
Price: 1 USD

Brand Name : SANWU

Model Number : ABC-6AWG*2

Certification : CCC,ISO

Place of Origin : LUOYANG, CHINA

MOQ : 1000m

Price : Negote

Payment Terms : T/T, L/C

Supply Ability : 200T/day

Delivery Time : 7-15 days

Packaging Details : Wooden drums

Name : Aerial Bundle Conductor

Conductor type : Solid/7 strands

Cores : 2 cores, duplex

Insulated : one insulated

Conductor size : 6AWG

Insulation : XLPE/PE/PVC

Insulated thickness : 45mls

Voltage : 0.6/1.0V

Application : power transmission line

Contact Now

Aluminum Overhead Aerial Bundle Conductor Covered Line Wire

Advantages

Safety: Insulated cables reduce the risk of electrical shocks and short circuits, improving safety for both linemen and the public.
Reliability: ABC is less susceptible to faults caused by weather conditions like wind, snow, and ice compared to bare conductors.
Cost-Effective: Lower installation costs as fewer poles are required and simpler installation procedures can be used.
Aesthetics: The bundled design is visually less intrusive, improving the appearance of urban areas.
Maintenance: Reduced tree trimming and maintenance needs due to insulated conductors.

1. Duplex Service Drop-Aluminum Conductor
Construction:
Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.
Standards: ASTM B-230, B-231, B-232 and B-399 & ICEA S-76-474

Code Name	Phase Conductor			Bare Neutral Messenger			Weight Per 1000 ft(lbs)		Rating(Amps)
Code Name	Size AWG	Strand	Insulation thickness (mls)	Size AWG	*Strand	Breaking strength (lbs)	XLP	POLY	XLP	POLY
AAC
Pekingese	6	solid	45	6	7/w	563	63.5	61.7	70	70
Collie	6	7/w	45	6	7/w	563	66.8	63.1	70	70
Dachshund	4	solid	45	4	7/w	881	95.5	93.4	90	90
Spaniel	4	7/w	45	4	7/w	881	100.5	95.4	90	90
Doberman	2	7/w	45	2	7/w	1,350	152.7	145.7	120	120
Malemute	1/0	19/w	60	1/0	7/w	1,990	242.6	234.2	160	160
ACSR NEUTRAL-MESSENGER
Setter	6	solid	45	6	6/1	1.190	75.0	73.2	70	70
Shepherd	6	7/w	45	6	6/1	1.190	78.3	74.6	70	70
Eskimo	4	solid	45	4	6/1	1.860	113.7	111.6	90	90
Terrier	4	7/w	45	4	6/1	1.860	118.7	113.6	90	90
Chow	2	7/w	45	2	6/1	2.850	181.7	174.7	120	120
Bull	1/0	19/w	60	1/0	6/1	4.380	288.7	280.3	160	160
6201 ALLOY NEUTRAL-MESSENGER
Chihuahua	6	solid	45	6	7/w	1,110	67.6	65.8	70	70
Vizsla	6	7/w	45	6	7/w	1,110	70.9	67.2	70	70
Harrier	4	solid	45	4	7/w	1,760	102.0	99.9	90	90
Whippet	4	7/w	45	4	7/w	1,760	107.0	101.9	90	90
Schnauzer	2	7/w	45	2	7/w	2,800	163.3	156.2	120	120
Heeler	1/0	19/w	60	1/0	7/w	4,460	259.2	250.8	160	160

2. Triplex Service Drop-Aluminum Conductor
Construction:
Concentric strand or compressed 1350-H19 conductor, polyethylene or crosslinked polyethylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.
Standards: ASTM B-230, B-231, B-232 and B-339 & ICEA S-76-474

Code Name	Phase Conductor				Bare Neutral Messenger			Weight Per 1000 ft(lbs)		Ampacity (Amps)
Code Name	Size AWG		Stranding	Insulation thickness (mls)	Size AWG	Stranding	Breaking strength (lbs)	XLP	POLY	XLP	POLY
6201 ALLOY NEUTRAL-MESSENGER
Minex		6	solid	45	6	7	1,110	106.6	102.9	85	70
Hippa		6	7/w	45	6	7	1,110	113.2	105.7	85	70
Prawn		4	solid	45	4	7	1,760	158.4	154.1	115	90
Barnacles		4	7/w	45	4	7	1,760	168.3	158.2	115	90
Shrimp		2	7/w	45	2	7	2,800	253.7	239.7	150	120
Gammarus		1/0	7/w	60	1/0	7	4,460	411.7	386.0	205	160
Leda		1/0	19/w	60	1/0	7	4,460	402.7	386.0	205	160
Dungenese		2/0	7/w	60	2/0	7	5,390	506.8	476.3	235	185
Cyclops		2/0	19/w	60	2/0	7	5,390	495.3	476.3	235	185
Flustra		3/0	19/w	60	3/0	7	6,790	611.4	589.1	275	215
Lepas		4/0	19/w	60	4/0	7	8,560	757.1	730.5	315	245
6201 ALLOY REDUCED NEUTRAL-MESSENGER
Artemia		4	solid	45	6	7	1,110	141.4	137.1	115	90
Crab		4	7/w	45	6	7	1,110	151.3	141.2	115	90
Solaster		2	7/w	45	4	7	1,760	226.6	212.6	150	120
Sandcrab		1/0	7/w	60	2	7	2,800	368.8	343.1	205	160
Echinus		1/0	19/w	60	2	7	2,800	358.8	343.1	205	160
Crayfish		2/0	7/w	60	1	7	3,530	452.6	422.5	235	185
Sipho		2/0	19/w	60	1	7	3,530	441.0	422.5	235	185
Fulgar		3/0	19/w	60	1/0	7	4,460	543.4	521.1	275	215
Arca		4/0	19/w	60	2/0	7	5,390	671.2	644.6	315	245
Code Name		Phase Conductors			Bare Neutral			Weight Per 1000 ft.(lbs)		Ampacity (Amps)
Code Name		Size AWG or MCM	Stranding	Insulation thickness (mls)	Size (AWG)	*Stranding	Rated strength (lbs)	XLP	Poly	XLP	Poly
AAC NEUTRAL-MESSENGER
Haiotis		6	solid	45	6	7	563	102.5	98.8	85	70
Patella		6	7/w	45	6	7	563	109.1	101.6	85	70
Fusus		4	solid	45	4	7	881	151.9	147.6	115	90
Oyster		4	7/w	45	4	7	881	161.8	151.7	115	90
Clam		2	7/w	45	2	7	1,350	243.2	229.2	150	120
Murex		1/0	7/w	60	1/0	7	1,990	395.1	369.4	205	160
Purpura		1/0	19/w	60	1/0	7	1,990	386.1	369.4	205	160
Nassa		2/0	7/w	60	2/0	7	2,510	485.8	455.3	235	185
Melita		3/0	19/w	60	3/0	19	3,310	585.2	562.9	275	215
Portunus		4/0	19/w	60	4/0	19	4,020	723.9	697.3	315	245
Nannynose		336.4	19/w	80	336.4	19	6,146	1160.4	1118.0	420	325
WITH FULL SIZE ACSR MESSENGER
Paludina		6	solid	45	6	6/1	1,190	114	113	85	70
Voluta		6	7/w	45	6	6/1	1,190	120	113	85	70
Whelk		4	solid	45	4	6/1	1,860	169	165	115	90
Periwinkle		4	7/w	45	4	6/1	1,860	176	172	115	90
Conch		2	7/w	45	2	6/1	2,850	267	261	150	120
Neritina		1/0	7/w	60	1/0	6/1	4,380	530	419	205	160
Cenia		1/0	19/w	60	1/0	6/1	4,380	426	416	205	160
Runcina		2/0	7/w	60	2/0	6/1	5,310	530	519	235	185
Triton		2/0	19/w	60	2/0	6/1	5,310	526	514	235	185
Cherrystone		3/0	7/w	60	3/0	6/1	6,620	656	643	250	200
Mursia		3/0	19/w	60	3/0	6/1	6,620	650	638	250	200
Razor		4/0	7/w	60	4/0	6/1	8,350	814	799	315	245
Zuzara		4/0	19/w	60	4/0	6/1	8,350	805	792	315	245
Limpet		336.4	19/w	80	336.4	18/1	8,680	1209	1167	420	325

Code Name		Phase Conductors			Bare Neutral			Weight Per 1000 ft.(lbs)		Ampacity (Amps)
Code Name		Size AWG or MCM	Stranding	Insulation thickness (mls)	Size (AWG)	Stranding	Rated strength (lbs)	XLP	Poly	XLP	Poly
WITH ACSR REDUCED SIZE MESSENGER
Scallop		4	Solid	45	6	6/1	1,190	148	144	115	90
Strombus		4	7/w	45	6	6/1	1,190	158	148	115	90
Cockle		2	7/ w	45	4	6/1	1,860	233	227	150	120
Janthina		1/0	7/ w	60	2	6/1	2,850	376	365	205	160
Ranella		1/0	19/ w	60	2	6/1	2,850	372	362	205	160
Cavolinia		2/0	7/ w	60	1	6/1	3,550	462	451	235	185
Clio		2/0	19/ w	60	1	6/1	3,550	458	446	235	185
Sanddollar		3/0	7/ w	60	1/0	6/1	4,380	570	557	275	215
Aega		3/0	19/ w	60	1/0	6/1	4,380	565	552	275	215
Cuttlefish		4/0	7/ w	60	2/0	6/1	5,310	706	691	315	245
Cerapus		4/0	19/ w	60	2/0	6/1	5,310	699	684	315	245
Cowry		336.4	19/ w	80	4/0	6/1	8,350	1135	1093	420	325

3. Quadruplex Service Drop-Aluminum Conductor
Construction:
Conductors are concentrically stranded, compressed 1350-H19 aluminum, insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded 6201, AAC, or ACSR, One conductor is manufactured with an extruded ridge for phase identification.
Standards: ASTM B-230, B-231, B-232, B-339 & ICEA S-76 -474

Code Name	Phase Conductor			Bare Neutral Messenger			Weight Per 1000 ft(lbs)		Rating(Amps)
Code Name	Size AWG	Strand	Insulation thickness (mls)	Size AWG	Strand	Breaking strength (lbs)	XLP	POLY	XLP	POLY
AAC NEUTRAL-MESSNGER
Clydesdale	4	Solid	45	4	7	881	208	201.8	100	80
Pinto	4	7/w	45	4	7	881	223	207.9	100	80
Mustang	2	7/w	45	2	7	1,350	333	312.6	135	105
Criollo	1/0	19/w	60	1/0	7	1,990	529	504.5	180	140
Percheron	2/0	19/w	60	2/0	7	2,510	649	620.5	205	160
Hanoverian	3/0	19/w	60	3/0	19	3,310	799	765.6	235	185
Oldenburg	4/0	19/w	60	4/0	19	4,020	986	946.7	275	210
Lippizaner	336.4	19/w	80	336.4	19	6,146	1,546	1,519.2	370	280
ACSR NEUTRAL-MESSNGER
Morochuca	6	Solid	45	6	6/1	1,190	152	147.4	75	60
Chola	6	7/w	45	6	6/1	1,190	162	151.7	75	60
Morgan	4	Solid	45	4	6/1	1,860	226	220	100	80
Hackney	4	7/w	45	4	6/1	1,860	241	226.1	100	80
Palomino	2	7/w	45	2	6/1	2,850	362	342.6	135	105
Costena	1/0	19/w	60	1/0	6/1	4,380	575	550.6	180	140
Grullo	2/0	19/w	60	2/0	6/1	5,310	707	678.7	205	160
Suffolk	3/0	19/w	60	3/0	6/1	6,620	872	838.9	235	185
Appaloosa	4/0	19/w	60	4/0	6/1	8,350	1079	1039.2	275	210
Bronco	336.4	19/w	80	336.4	18/1	8,580	1613	1568.2	370	280
Gelding	336.4	19/w	80	4/0	6/1	8,350	1548	1494.3	370	280

Code Name	Phase Conductor			Bare Neutral Messenger			Weight Per 1000 ft(lbs)		Rating(Amps)
Code Name	Size AWG	Strand	Insulation thickness (mls)	Size AWG	Strand	Breaking strength (lbs)	XLP	POLY	XLP	POLY
6201 ALLOY NEUTRAL-MESSENGER
Bay	6	Solid	45	6	7	1,110	145	140.0	75	60
French Coach	6	7/w	45	6	7	1,110	155	144.3	75	60
German Coach	4	Solid	45	4	7	1,760	214	208.3	100	80
Arabian	4	7/w	45	4	7	1,760	229	214.4	100	80
Belgian	2	7/w	45	2	7	2,800	344	323.1	135	105
Shetland	1/0	19/w	60	1/0	7	4,460	546	521.1	180	140
Thoroughbred	2/0	19/w	60	2/0	7	5,390	670	641.5	205	160
Trotter	3/0	19/w	60	3/0	7	6,790	825	791.8	235	185
Walking	4/0	19/w	60	4/0	7	8,560	1019	979.7	275

4. FAQ
(1).Are you a manufacturer or trading company?
We are a leading and profesional manufacturer of cable and wire, including: LV power cable, ABC, bare conductor, building wire, control cable and so on, with high quality.
(2). Is it sample available?
For stock product, of course, the sample is available for free. The sample will be released against the freight, and freight collect is also acceptable.

(3). Can we represent your SANWU CABLE to bid?
Highly welcome! We are looking for agency or partner in your local to promote our products, develop business, accordingly, we will provide nice condictions to make you get rich return.

(4). How about the package?
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.

5. Available Samples:

Aluminum Overhead Aerial Bundle Conductor Covered Line Wire

6. Factory Cable making machines:

7. Packing&Delivery:

Aluminum Overhead Aerial Bundle Conductor Covered Line Wire
